Quick Details

  • Type: Other Heat Insulation Materials
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: DM
  • Model Number: FW780
  • Material: AL / Polyethylene/PE woven
  • Application: Roof underlayment, Roof sarking, Housewrap, FOAM Facing...
  • Name: PE woven aluminum foil
  • Color: Silver
  • Width: 600-1800mm
  • Length: 20M-3000M
  • Reflective: 97%
  • Brand: DM
  • Function: Heat Resistant,waterproof, Vapor barrier, cool & heat insulation
  • Surface Treatment: Aluminum foil

Packaging & Delivery

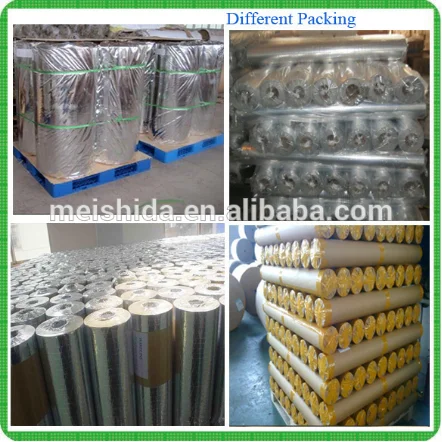

Packaging Details Usuall packed with foil kraft paper, PE bag or Shrink film or according to order.
Delivery Time Two weeks

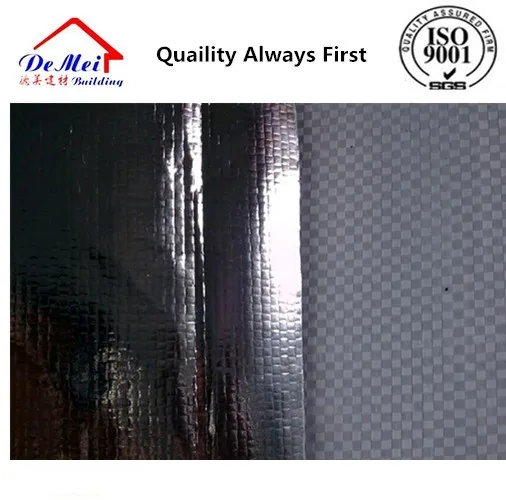

 Heat Sealing Aluminum foil Woven Fabric

         (AL+PE+WOVEN+PE)





Description of Aluminum foil woven fabric:

The material provides excellent insulation: reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction,convection,and radiation.The side of metalized PET/Alu forms an effective barrier against moisture,air currents and vapors.It is economical solution in many field.

Specification:

Color: Green, Blue, Silver, Grey, Black, Orange

Max Width : 2.6 M, it can be slitted according to customer's demand

Regular Length per roll: 50~3000 M

Weight: 80-250gsm

 Types / Structure:

1.Alu Foil +PE +Woven

2 Alu Foil+PE +Woven+PE

3.Alu Foil+PE +Woven+PE+Alu

4.Antiglare coating+Alu Foil+PE +Woven+PE

5.Antiglare coating+Alu Foil+PE +Woven+PE+Alu Foil

6.Alu Foil+PET+PE +Woven+PE

7.Alu Foil+PET+PE +Woven+PE+Alu Foil

8.These types can be produced Fire resistant and Perforated.

Characteristics:

1.Clean,thin,light weight, good flexibility and cushioning;

2.Reflective,Insulated,Waterproof,(Fireproof)

3. Low thermal conductivity and superior heat insulation;

4.Cost effective and versatile, Invariable if it is attacked repeatedly;

5.Easy to install,high efficiency,Maintenance free, environmentally friendly.



Application of aluminum foil vapor barrier:

 1. To laminate  EPE,XPE,IXPE,Bubble,Kraft,Fibreglass Wool as good

Building / construction Thermal Insulation Material to reduce summer heat and    keep warm in winter.

(1)  Roof,Attic,Underlay & floor Insulation Under Concrete & wood.

(2)  Crawl Space, Stud Wall, Metal Frame Building Insulation

 2. Wrapping

(1)Protective coating of ventilating pipe,HVAC Duct & Pipe;

(2)Shells of air conditioner and water heater;

(3)Packing lift/elevator, machinery, sensitive products.

(4)Industrial & commercial sheds.

3.Sarking & Radiant Barrier

4.To make Container liner; tray cover.

Technical Parameters:

Product Structure

Description



Alu. Foil

7µm



Adhesive

PE



PE Woven Cloth

80g/m²



Physical Property

Value

Test Method

Basic Weight

135g/m²

Scale

Tensile Strength(MD)

511.00N/25mm

GB/T 7689.5-2001

Tensile Strength(CD)

352.00N/25mm

GB/T 7689.5-2001

Burst Strength

554.5N

GB/T 454-2002

Reflectivity

95%

-

Temperature Resistance

-26°C to 66°C not delaminating

ASTM C1263

Water Vapor Permeability

≤5.75 ng/N.s

ASTM E-96

 Other structure

1.Alu + (single / double) PE bubble + PE film

 2.Alu + (single / double) PE bubble + Alu

3.  Alu + woven + (single / double) PE bubble + Alu

4.   Coating + Reinforced Al + (single/double) PE bubble + Alu + Coating

5.    Metallic Alu + (single / double) PE bubble + Metallic Alu

Foam insulation materials

 1.  Pure Alu/Metallic Alu + XPE/EPE

2.  Alu + XPE/EPE + Alu

3.  Alu + Woven + XPE + Alu

4.  Alu + XPE + Peel&Stick

5. Coating + Reinforced Alu + XPE + Reinforced Alu + Coating

Radiant barriers

 1.  Alu + Woven + Alu

2. Alu + Kraft + fireproof glue + kraft + Alu

3. Alu + Kraft + fireproof glue +woven + Coating

4. Alu + fireproof glue + Woven + Coating



Our Service:

1.Prompt Reply to customers’ inquiry on line in 24 hours.

2.Strict quality control system

3.Good Service & Good reputation in the market.

4.Low MOQ can meet your promotional business very well.

5.Timely Delivery & Competitive Price are workable

6.OEM & ODM are welcome.
